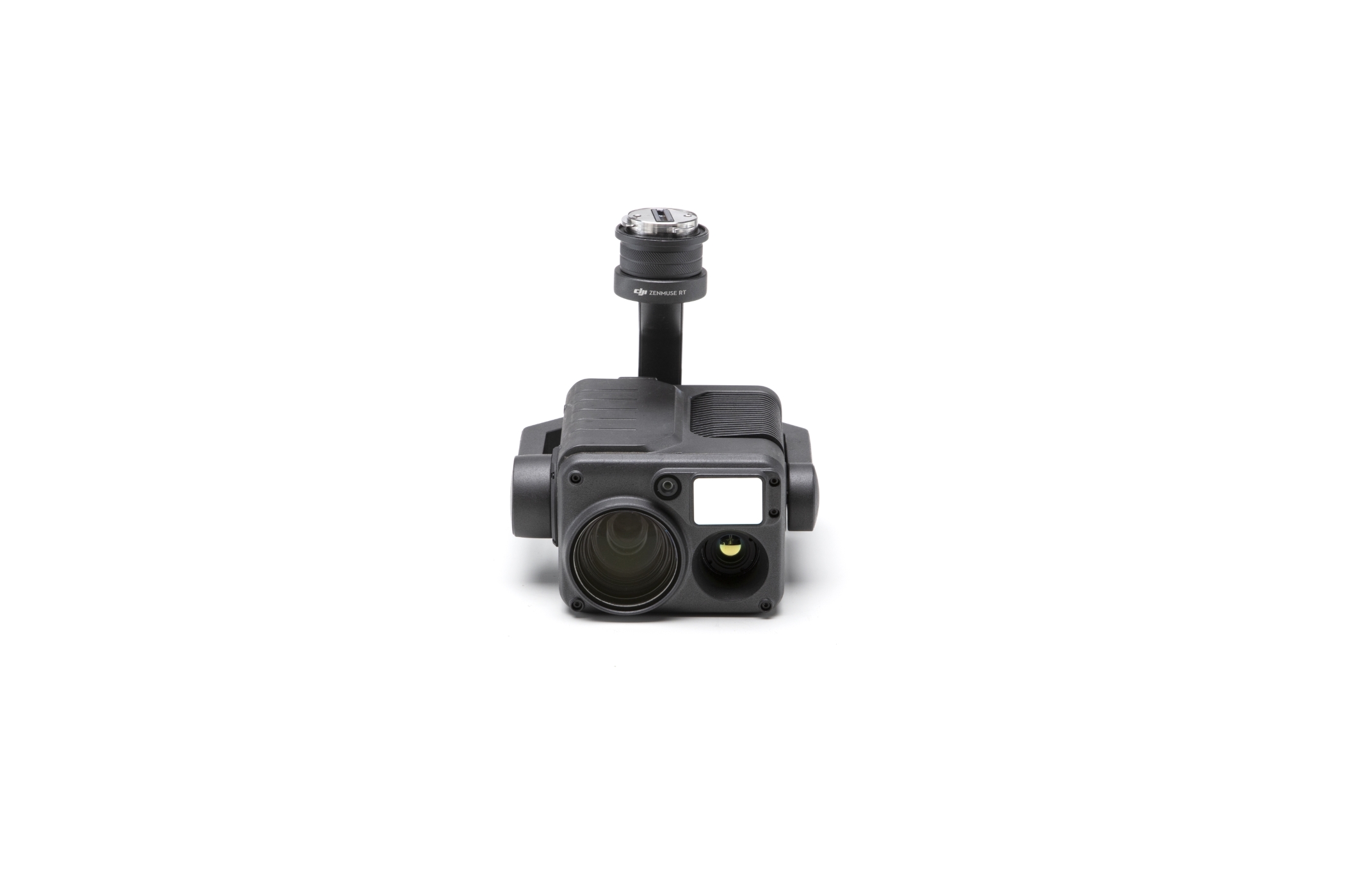

DJI Zenmuse H20T


Unleash the Power of One

Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.

Quad-Sensor Solution
  • 20 MP 23x Hybrid Optical Zoom Camera
  • 12 MP 82.9 DFOV Wide Angle Camera
  • 1200 m Laser Range Finder
  • 640×512 px Radiometric Thermal Camera
  • IP44 Rating
  • -20°C to 50°C Operating Temperature
  • Active Image Stabilization and EIS
  • Night Scene Mode
Use Cases

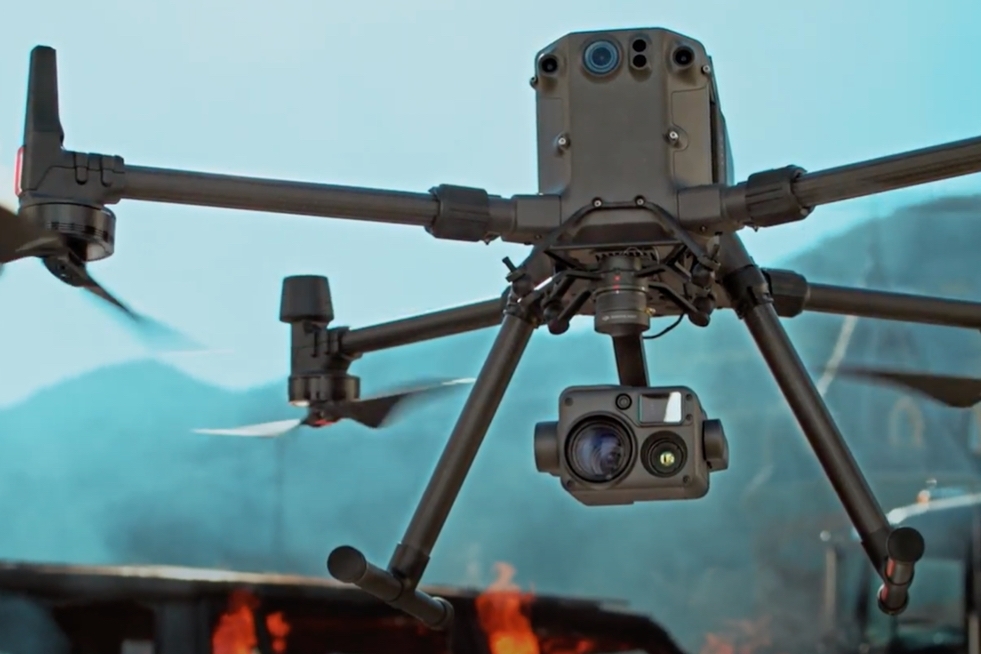

  • Firefighting – Fight fires and save lives without endangering personnel.
  • Search & Rescue – Act quickly to locate missing people and better plan rescue missions.
  • Law Enforcement – Quickly assess a situation and plan accordingly while improving officer and bystander safety.
  • Powerline Inspection – Easily visualize extensive power line networks in remote areas.
  • Oil & Gas – Conduct inspections of pipelines, well sites, and more while keeping workers away from risky areas.
SKU: ZEN_H20T Categories: , Tags: , , Brand:

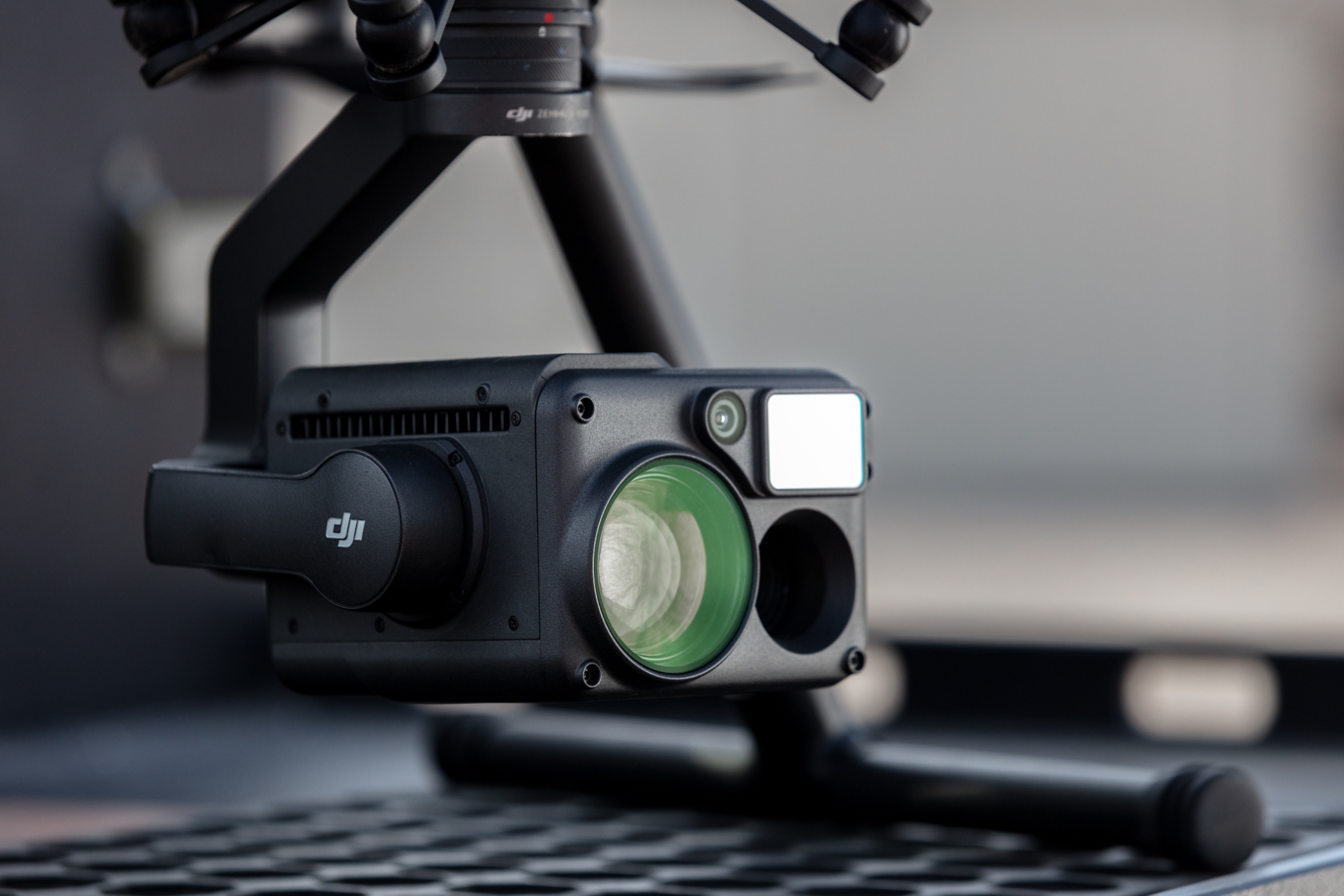

All The Sensors You Need – In One

Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

Powerful Zoom Camera
  • 23x Hybrid Optical Zoom, 200x Max Zoom
  • 20 MP 1/1.7″ CMOS Sensor
  • Video Resolution: 4K/30fps
Wide Camera
  • Equivalent Focal Length: 24mm, DFOV: 82.9°
  • 12 MP 1/2.3″ CMOS Sensor
Laser Rangefinder
  • Range: 3 m – 1200 m
  • Accuracy: ± (0.2 m + Dx0.15%)
Radiometric Thermal Camera
  • DFOV: 40.6°
  • Resolution: 640×512, Frame Rate: 30fps
  • Thermal Sensitivity: ≤ [email protected] (NEDT)
Accurate Temperature Measurement

Monitor the temperature of a site or an asset to eliminate any risks by acquiring a precise temperature reading from the air.

Spot Meter

Tap a point to get a real-time reading of the surface temperature.

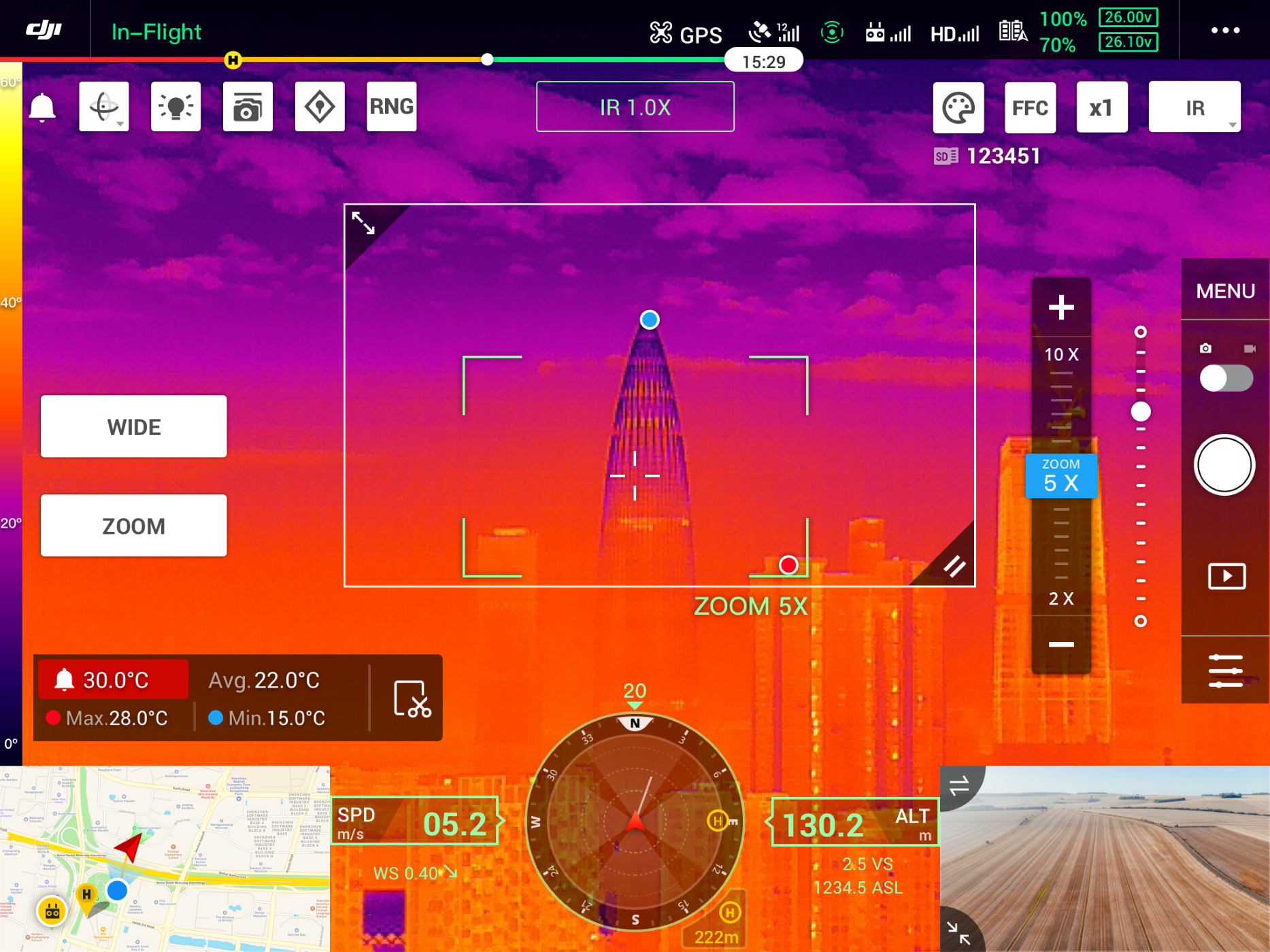

Area Measurement

Select an area to view the lowest, highest, and average temperatures.

Temp Alarm

Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.


Visualize a specific band of temperatures to find what is important.

Color Palettes

Adjust the colors applied to the thermal data based on the needs of specific scenarios.

Gain Modes

Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.

R-JPEG Images

Images captured by the Zenmuse H20T are in the R-JPEG format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.

Seamless User Interface

A new integrated user interface lets you quickly switch between wide, zoom, and preview the zoom FOV while in wide or thermal camera view.

AI Spot-Check

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

High-Res Grid Photo

Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.


A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.

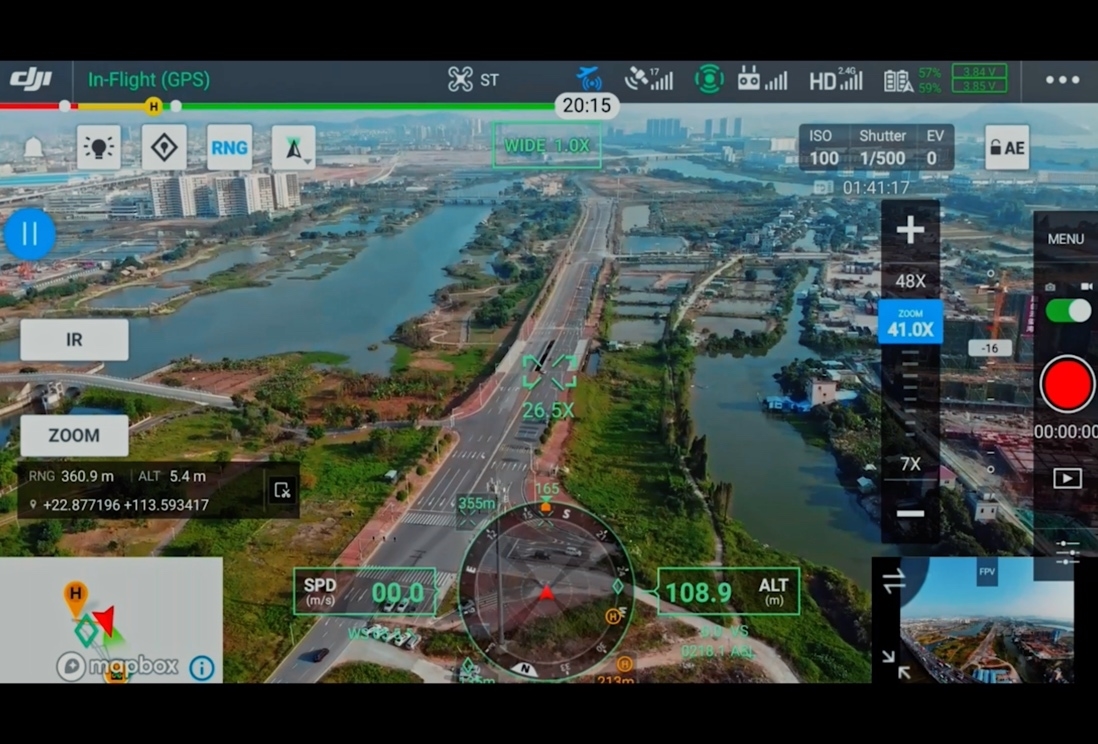

Smart Track

Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.

Additional information

Weight N/A
Dimensions N/A
DJI Care Enterprise

Basic, Plus
